Home > BM Bimetal Bearing

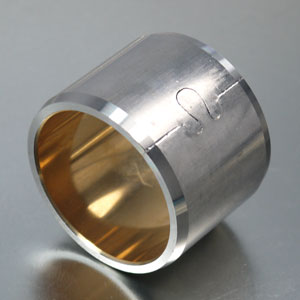

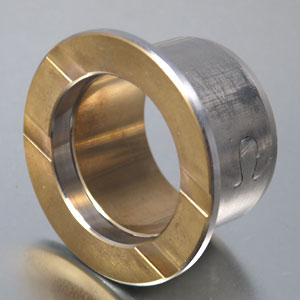

BM Bi-metal Bearing is made of steel-bronze-compound material with indents as reservoir for the grease. It has high load capacity, very good resistance to fatigue strength at higher temperatures. It is applicable in rough operation conditions. The products are widely used in mechanical handling and lifting equipment, hydraulic cylinders, agricultural equipment, off highway equipment.
Technical Data
|
|
|
BM800 |
BM801 |
BM700 |
BM701 |
|
Material |
Steel+CuSn6Zn6Pb3 |
Steel+CuPb10Sn10 |
Steel+CuPb30 |
Steel+CuPb24Sn4 |
|
|
Bronze Hardness |
HB70-HB100 |
HB60-HB90 |
HB30-HB45 |
HB45-HB70 |
|
|
Max. Load Pressure |
150 N/mm2 |
150 N/mm2 |
120 N/mm2 |
130 N/mm2 |
|
|
Max. Linear Speed |
4m/s |
5m/s |
15m/s |
10m/s |
|
|
Max. PV |
8 N/mm2 * m/s |
10 N/mm2 * m/s |
8 N/mm2 * m/s |
10 N/mm2 * m/s |
|
|
Tensile Strength |
185 N/mm2 |
185 N/mm2 |
200 N/mm2 |
150 N/mm2 |
Products Standard: ISO3547 (Replaces DIN1494)
Catalogue
Click here to download catalogue of BM 10-10 Bronze Layer Bimetal Bearing Bushing
