W-PM Metal backing Thrust Washer

Static Load: 250N/mm2
Dynamic Load: 140N/mm2
Max. Speed: 2.5m/s
Temperature: -40~+130C
Product description: W-PM Metal backing Thrust Washer,dx washer,dx bushing,dx thrust washer
INQUIRY

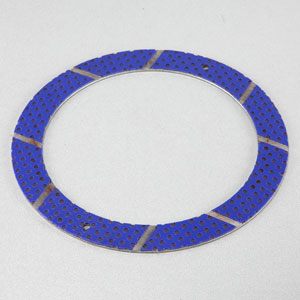

W-PM Metal Backing POM Composite Thrust Washer

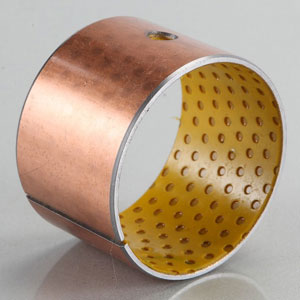

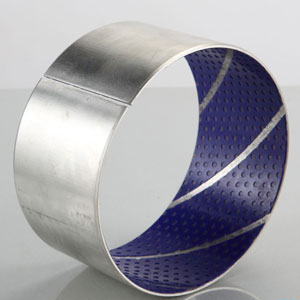

is made of triple layer composites: carbon steel as base, porous bronze intermediate layer, POM & Pb (or non-Pb mixture) inner surface layer. The POM inner layer pressed with many oil pockets to store enough grease. Also it called SF-2 in China and DX , PAP P20 overseas.

The products are widely used in machinery industry, such as auto machines, punch machine, forging and pressing machine, vehicle chassis, lifting equipment, mining machinery, steel industry, etc.

Technical Data

1.POM composite 0.3~0.5mm as sliding layer 2.Porous bronze 0.2~0.3mm 3.Metal backing 0.4~2.2mm* 4.Tin-plating 0.005mm or copper plating 0.008mm * Metal in carbon steel, bronze or stainless steel.	Performance	Data (*According to steel backing)
	Load capacity P (Dry friction)	Static load	250N/mm²
		Dynamic load	140N/mm²
	Max linear speed V	Dry friction	/
		Oil lubrication	2.5m/s
	PV value limit	Dry friction	2.8N/mm².m/s
		Oil lubrication	22N/mm².m/s
	Friction coef u	Dry friction	/
		Oil lubrication	0.08~0.25
	Working temperature	-40^oC~+130^oC
	Thermal conductivity	13W/mk
	Linear expansion	11*10 ^-6/K
