Home > WB700/800 Bronze Bushing

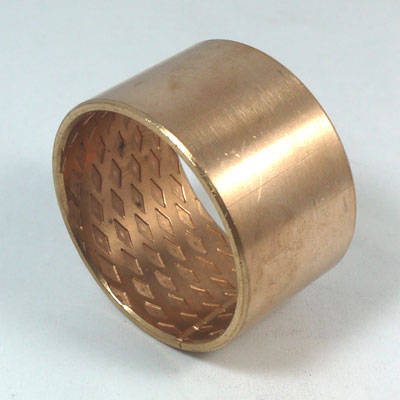

is made of bronze plate with oil pockets or holes. It is a kind of wrapped greased (also sometimes graphite) lubricating bushing bearing. Bronze material normally in CuSn6.5P or CuSn8P, the bronze is made as the particular formulation with high specific and gravity, and on its surface may be incorporated with spherical or diamond shaped indentations or/and oil grooves as required by customers. The products are widely used in construction machinery, agricultural machinery and so on.
Technical Data
|
|
|
S-WB700 S-WB702 |
WF-WB700 WF-WB702 |
S-WB800 S-WB802 |
WF-WB800 WF-WB802 |
|
Type |

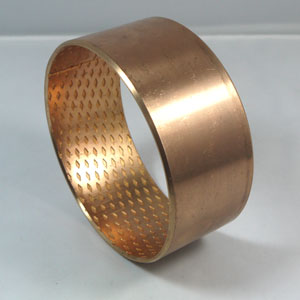

Cylinder |

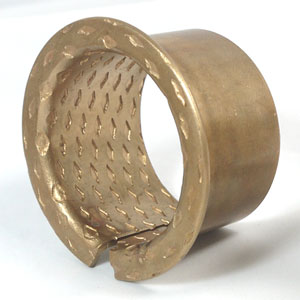

Flanged |
Cylinder, Harden |
Flanged, Harden |
|
|
Hardness |
HB90-HB120 |
HB90-HB120 |
HB125-HB150 |
HB125-HB150 |
|
|
Max. Load Pressure |
75 N/mm2 |
75 N/mm2 |
100 N/mm2 |
100 N/mm2 |
|
|
Max. Linear Speed |
2m/s |
2m/s |
2.5m/s |
2.5m/s |
|
|
Max. PV |
2.5 N/mm2 * m/s |
2.5 N/mm2 * m/s |
2.8 N/mm2 * m/s |
2.8 N/mm2 * m/s |
|
|
Tensile Strength |
450 N/mm2 |
450 N/mm2 |
460 N/mm2 |
460 N/mm2 |
|
|
Yield Strength |
250 N/mm2 |
250 N/mm2 |
260 N/mm2 |
260 N/mm2 |
Products Standard: ISO3547 (Replaces DIN1494)
Catalogue
Click here downloading catalogue of WB Wrapped bronze Bushing
