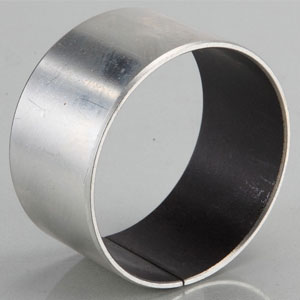

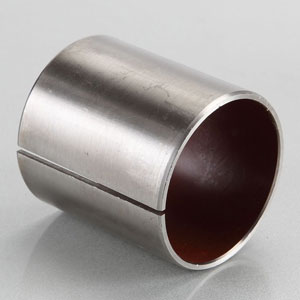

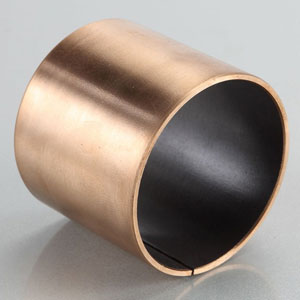

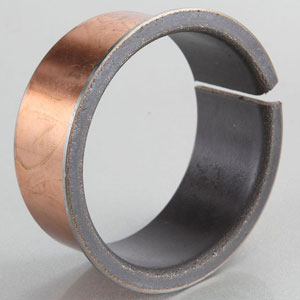

PE-B Bronze Backing PTFE Composite Bushing

PE-B Bronze Backing PTFE Composite Bushing

Static Load: 250N/mm2
Dynamic Load: 140N/mm2
Max. Speed: 5m/s
Temperature: -195~+280C
Product description: PE-B Bronze Backing PTFE Composite Bushing
INQUIRY

PE-B bronze Backing PTFE Composite bushing

is wrapped by steel backing, Sintering bronze inter layer and PTFE(Teflon) composite anti-wear inner surface. Also it is name SF-1 bushing in China and DU, DP4, PAP P10 overseas. It is wildly used in hydraulic gear pumps, oil cylinder, oil Damping bushes and piston rings for automobiles and motorcycles and textile, food-stuff machines, etc.

PE DU SF-1 PTFE Composite Bronze Bushing

PTFE oilless dry bearing bushing is in carbon steel backing with sintered bronze intermediate layer, then PTFE (teflon) composite inner coated.PE model code means carbon steel in cylinder type bushing

Technical Data

1.PTFE composite 0.01~0.03mm as sliding layer* 2.Porous bronze 0.2~0.3mm 3.Bronze backing 0.7~2.3mm** 4.(Without further plating) Normally it is without lead, customized can add it. * Metal can be in carbon steel, bronze or stainless steel.	Performance	Data (*According to steel backing)
	Load capacity P (Dry friction)	Static load	250N/mm²
		Dynamic load	140N/mm²
	Max linear speed V	Dry friction	2.5m/s
		Oil lubrication	5m/s
	PV value limit	Dry friction	3.6N/mm².m/s
		Oil lubrication	50N/mm².m/s
	Friction coef u	Dry friction	0.08~0.20
		Oil lubrication	0.02~0.07
	Working temperature	-200^oC~+280^oC
	Thermal conductivity	40W/mk
	Linear expansion	12*10 ^-6/K
