JDB-P SL2 Graphite Plugged Bronze Slide Plate

JDB-P SL2 Graphite Plugged Bronze Slide Plate

Bronze base: CuZn25Al6/#500SP101
Hardness: >HB210
Max. Pressure: 100N/mm2
Max. Speed:0.5m/s
Product description: SOL CBS SGL HCS JDB-P oiles 500sp101 SL2 Graphite Plugged Bronze Slide Plate
INQUIRY

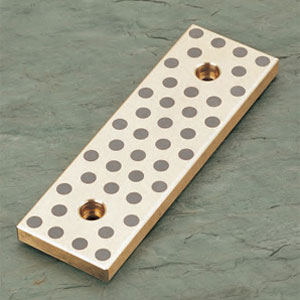

JDB-P SL2 Graphite Plugged bronze Slide Plate

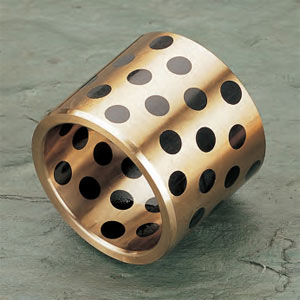

Solid Bronze Bearing is manufactured using high tensile manganese bronze plugged with solid lubricants. Basic bronze alloy material is CuZn25Al6Fe3Mn3 with graphite (SL2) plugged, we also provide widely optional choice from CuSn5Pb5Zn5, CuAl10Fe5Ni5, CuSn12, and other standards materials.

Especially our company have developed the SL4 solid lubricants for water contacting applications like jet, propeller, ship, boatyard, offshore platform, hydraulic turbine etc.

These products are mainly used in applications of high load & moderate speed. It has the ability to withstand the temperature up to 400^oC. We also have the capability to develop these bushes and plates as per any specifications of our clients.

oiles bronze plate

Technical Data

Bronze material	CuZn25Al6Fe3Mn3 +SL2	CuSn5Pb5Zn5 +SL2	CuAl10Fe5Ni5 +SL2	CuSn12 +SL2
Cu%	Rest	85	80	88
Sn%	--	5	--	12
Pb%	--	5	--	--
Zn%	25	5	--	--
Al%	6	--	10	--
Ni%	--	--	5	--
Fe%	3	--	5	--
Mn%	3	--	--	--
Density	8.2 g/cm3	8.8 g/cm3	8.5 g/cm3	8.8 g/cm3
Hardness	>HB210	>HB70	>HB150	>HB80
Max. Load Pressure	100 N/mm²	40 N/mm²	50 N/mm²	45 N/mm²
Max. Linear Speed	0.5 m/s(dry)	0.4 m/s(dry)	0.25 m/s(dry)	0.5 m/s(dry)
Max. PV	1.65 N/mm²_* m/s	1.00 N/mm²_* m/s	1.25 N/mm²_* m/s	1.20 N/mm²_* m/s
Tensile Strength	>750 N/mm²	>200 N/mm²	>500 N/mm²	>360 N/mm²
Elongation	>12 %	>15 %	>10 %	>8 %
Temperature Limit	-40 ~ +300 ^oC	-40 ~ +250 ^oC	-40 ~ +400 ^oC	-40 ~ +300 ^oC
